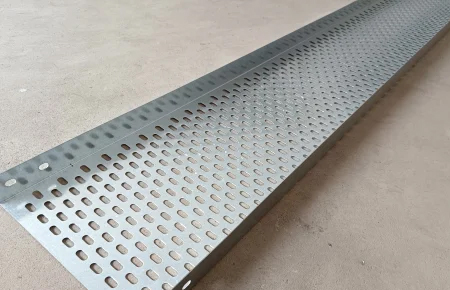

Perforated Type Cable Tray
Perforated Type Cable Tray is a durable cable management solution featuring a ventilated base with evenly spaced holes, allowing efficient heat dissipation and easy cable routing. Ideal for electrical wiring in industrial and commercial setups, it offers excellent load-bearing capacity, corrosion resistance, and simplified installation with reliable structural support.
| Technical Specification | |
|---|---|
| Raw Material | Stainless Steel, MS [HR & CRC], pre-galvanized |
| Finish Of Product | Pre-galvanized, Powder Coated, hot-dip Galvanized, Stainless Steel |
| Flange Type | Inside Flange, Outside Flange, Heavy Duty Inside Flange, Regular Flange, U Type Flange |
| Coupler Size | 20x200, 25x200, 30x200, 35x200, 70x200 |
| Features | Highly Durable, Ventilation, Ease Of Installation |
| Technical Specification | ||||
|---|---|---|---|---|
| Width | Height | Thickness | Length | Punching Size |
| 50 | 25/35/50 | 1.2/1.6/1.8/2.0/2.5/3.0 | 2500/3000 | 20X10 |
| 75 | 20X10, 35X8 | |||
| 100 | 20/35/50/75/100 | 20X10, 35X8 | ||
| 150 | 20X10, 35X8 | |||
| 200 | 20X10, 35X8 | |||
| 300 | 1.2/1.6/1.8/2.0/2.5/3.0 | 20X10, 35X8 | ||
| 400 | 20X10, 35X8 | |||
| 450 | 1.5/1.6/1.8/2.0/2.5/3.0 | 20X10, 30X8, 35X8, 40X8 | ||
| 500 | 20X10, 30X8, 35X8, 40X8 | |||
| 600 | 20X10, 30X8, 35X8, 40X8 | |||
| 750 | 20X10, 30X8, 35X8, 40X8 | |||
| 900 | 20X10, 30X8, 35X8, 40X8 | |||
| 1000 | 20X10, 30X8, 35X8, 40X8 | |||
