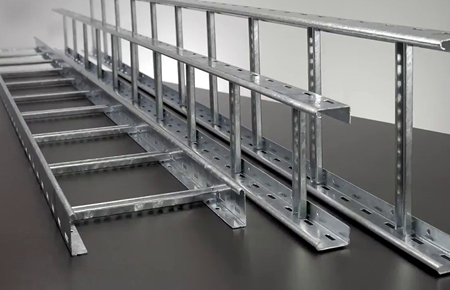

Ladder Type Cable Tray
A ladder type cable tray is a cable management system comprising two parallel side rails connected by evenly spaced rungs, resembling a ladder, designed to support and route electrical cables in industrial and commercial environments.
| Technical Specification | ||||
|---|---|---|---|---|
| Raw Material | Pre-Galvanised, Mild Steel (HR, CR), Stainless Steel | |||
| Finish Of Product | Pre-galvanized, Powder Coated, Hot-dip Galvanized, Stainless Steel | |||
| Coupler Size | 20x200, 25x200, 30x200, 35x200, 70x200 | |||
| Features | Highly Durable, Ventilation, Ease Of Installation | |||
| Technical Specification | ||||
|---|---|---|---|---|
| Width | Height | Thickness | Length | Punching Size |
| 150 | 50/75/100/150/200 | 1.5/1.6/2.0/2.5/3.0 | 2500/3000 | 20x10, 30x10 |
| 200 | 20x10, 30x10 | |||
| 250 | 20x10, 30x10 | |||
| 300 | 20x10, 30x10 | |||
| 350 | 20x10, 30x10 | |||
| 400 | 20x10, 30x10 | |||
| 450 | 20x10, 30x10 | |||
| 500 | 20x10, 30x10 | |||
| 550 | 20x10, 30x10 | |||
| 600 | 2.0/2.5/3.0 | 20x10, 30x10 | ||
| 650 | 20x10, 30x10 | |||
| 700 | 20x10, 30x10 | |||
| 750 | 20x10, 30x10 | |||
| 800 | 20x10, 30x10 | |||
| 900 | 20x10, 30x10 | |||
| 1000 | 20x10, 30x10 | |||
| 1200 | 20x10, 30x10 | |||
| 1500 | 20x10, 30x10 | |||
